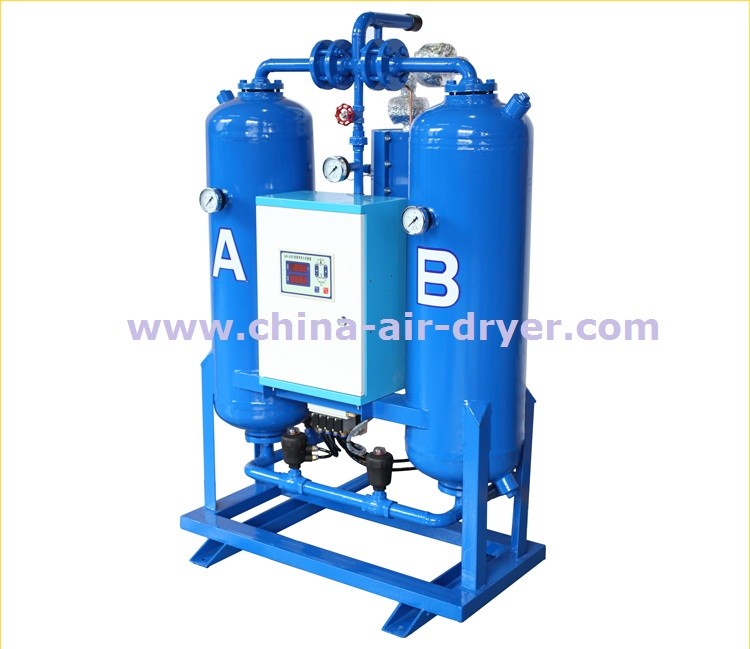

6% air loss Heated Desiccant Dryer with heater

Product Navigation

6% air loss Heated Desiccant Dryer with heater

Categories	Heated Desiccant Dryer
Brand	KL
Model	KXR
Item	heated desiccant air dryer with heater
Inlet pressure	7bar
Dew point	-40°C
Purge loss	6~8%
Switch time	2 hours (adjustable)
Vessel Standard	China GB, CE PED, ASME
Voltage	380V/50Hz/3Ph
Desiccant	Activated Alumina
FOB port	Shanghai 、Ningbo
Terms of Payment	L/C, T/T
Update Time	Dec 3,2024

Contact Now

Favorites

Detail Information

KXR- Series Heatled Desiccant air Dryer(0.7-510m3/min)

Descriptions

KXR Series heated adsorption air dryer includes an external electrical heater to heat dry purge air for desiccant regeneration. Heating allows the dryers to consume only 6% of the dried compressed air volume for this purpose – significantly less than is required for heatless air dryers. The flow capacity is available from 0.7 to 510m3/min,the outlet pressure dew point is - 40 deg c .

Features

High Performance pneumatic Valves

Oil-less pneumatic valves are designed specifically for high temperature applications and feature stainless steel internals and filled PTFE seats.

Pressure Gauges

Stainless steel gauges, located on each tower, provide visual indication of pressure during drying and regeneration processes.

Comprehensive presentation

Specifications

Model	Flow Capacity		Heater	Dimensions			Inlet/outlet Connection	Weight
Model	m3/min	CFM	kw	L(mm)	W(mm)	H(mm)	BSP	(kg)
KXR-5	0.7	25	0.9	690	500	915	1/2”	120
KXR-10	1.6	56	0.9	690	500	1298	1”	190
KXR-20	2.6	92	1.5	780	500	1324	1”	280
KXR-30	3.8	134	1.5	860	540	1350	1”	320
KXR-60	7	247	2.4	1010	700	1558	1 1/2”	480
KXR-75	8.5	300	2.4	1010	700	1785	1 1/2”	540
KXR-100	11.5	406	4.5	1240	800	2232	2”	650
KXR-120	13	476	4.5	1240	800	2232	2”	690
KXR-150	17	600	5.4	1280	860	2360	DN65	780
KXR-200	23	812	7.5	1320	860	2477	DN65	920
KXR-250	27	953	9	1700	930	2570	DN65	1050
KXR-300	34	1200	10.8	1750	960	2626	DN80	1200
KXR-400	45	1588	15	1850	1060	2646	DN100	1530
KXR-500	55	1941	18	1850	1060	2646	DN100	1750
KXR-600	65	2294	22.5	2160	1240	2784	DN125	2230
KXR-800	87	3071	28.8	2416	1440	2827	DN150	2710
KXR-1000	110	3883	37.5	2980	2120	2990	DN150	4130
KXR-1200	130	4589	45	3080	2220	3030	DN150	4700
KXR-1500	160	5648	56	3180	2320	3316	DN200	5800
KXR-2000	210	7413	72	3380	2520	3360	DN200	7370
KXR-2500	260	9178	90	3580	2720	3596	DN250	9020
KXR-3000	320	10943	112.5	3580	2970	3606	DN250	11900
KXR-3500	360	12708	124.8	3720	3220	3720	DN300	13100
KXR-4000	410	14473	145.8	3910	3370	3910	DN300	14800
KXR-5000	510	18003	170	4200	3600	4200	DN350	16000
