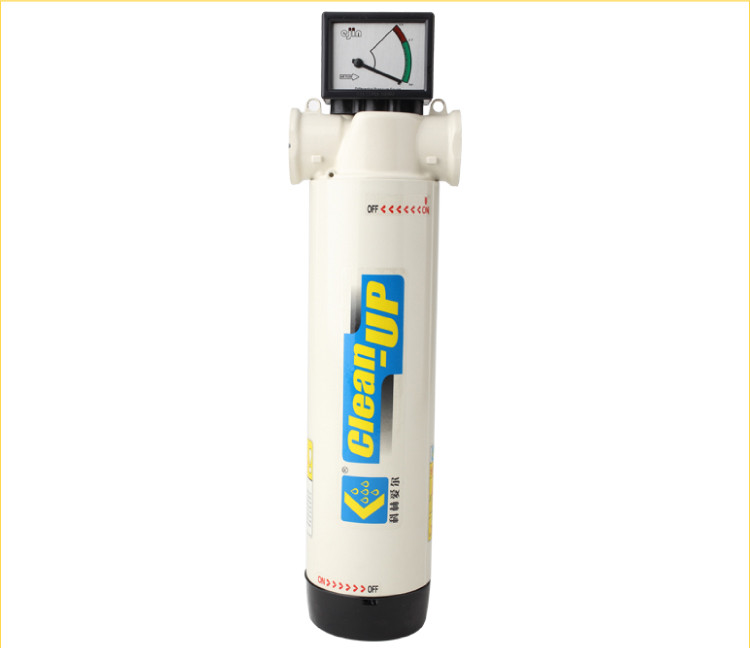

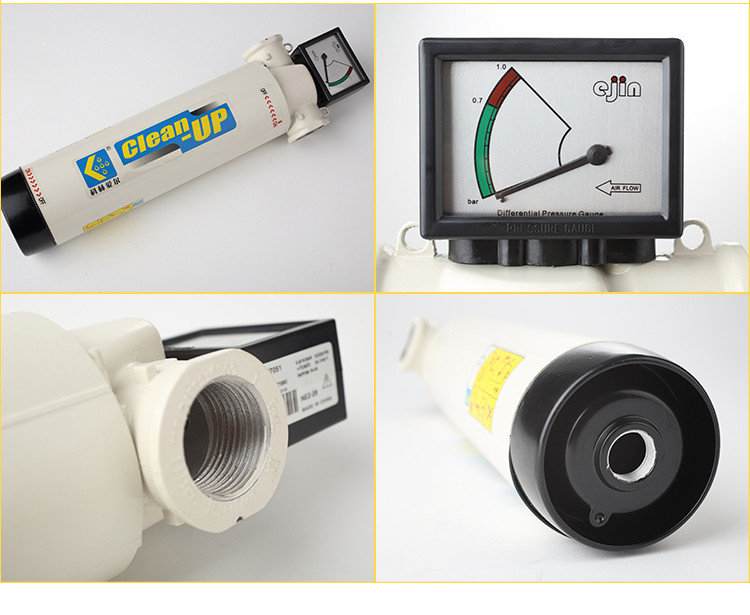

1micron compressed air filter With Pressure Gauge Type

Product Navigation

1micron compressed air filter With Pressure Gauge Type

Categories	Small capacity air filter
Brand	KL
Model	70-D-G
ITEM	1micron compressed air filter
Capacity	2.6m3/min
Working pressure	2-16bar
Accessories	auto-drainer
L*W(mm)	305*107
Weight	3.1kg
FOB port	Shanghai 、Ningbo
Terms of Payment	L/C, T/T, Western Union
Update Time	Dec 3,2024

Contact Now

Favorites

Detail Information

KL Compressed Air Filter —Removing compressed air contaminant efficiently

KL filter provides high quality compressed air for users, filter is sold in more than 20 countries and districts.

Installing KL compressed air filter can ultimately remove compressed air pollutants. (such as oil, water and dust etc.) Ensuring user’s maximum clean compressed air.

KL company have 5 kinds of compressed air filter for your choose:

CLASS C Main pipe dust filter ----3micron3ppm

CLASS T Main pipe oil/water filter ----1micron1ppm

CLASS A High efficient oil filter ----0.01micron0.01ppm

CLASS F Supper high efficient oil filter----0.01micron0.001ppm

CLASS H Activated carbon micro oil moisture filter----0.01micron0.003ppm

Comprehensive presentation

Specifications

Model	Flow(m3/min)	Pipe Connector Caliber	Length*Wildth	Filter Element		Weight(kg)
Model	Flow(m3/min)	Pipe Connector Caliber	Length*Wildth	Model	Number	Weight(kg)
(Class)-35	1.6	ZG1″	260*107	(Class)-35E	1	2.8
(Class)-70	2.6	ZG1″	305*107	(Class)-70E	1	3.1
(Class)-100	3.8	ZG1″	365*107	(Class)-100E	1	4.2
(Class)-150	5	ZG1-1/2″	420*130	(Class)-150E	1	5
(Class)-200	7	ZG1-1/2″	550*135	(Class)-200E	1	6.8
(Class)-300	8.5	ZG1-1/2″	635*135	(Class)-300E	1	7.3
(Class)-400	13.5	ZG2″	760*170	(Class)-400E	1	19.2
(Class)-600	17	ZG2″	820*170	(Class)-600E	1	23
(Class)-800	23	ZG2″	1060*170	(Class)-800E	1	28
