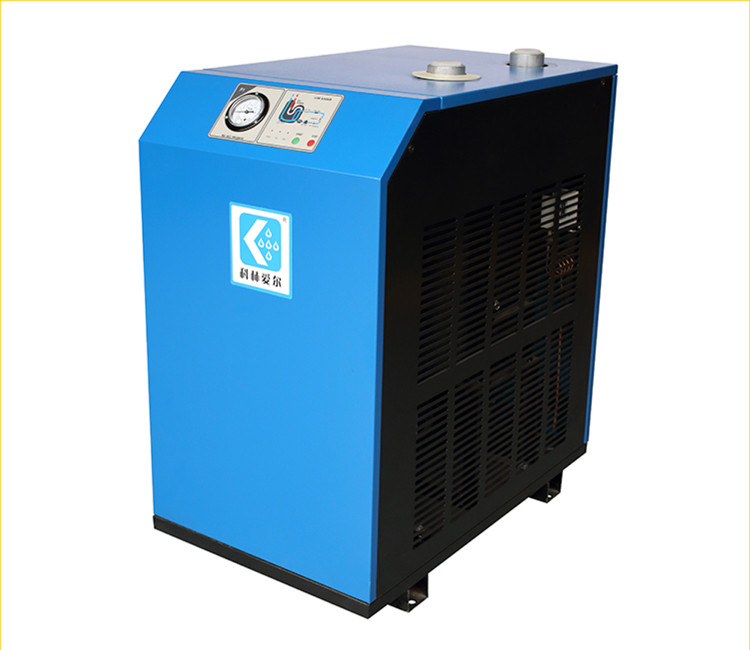

R134a small refrigerated Air Dryer KDL-10F (56cfm) for 10hp compressor
R134a small refrigerated Air Dryer KDL-10F (56cfm) for 10hp compressor
![R134a small refrigerated Air Dryer KDL-10F (56cfm) for 10hp compressor](https://icdn.tradew.com/file/201011/214/jpg/6961939.jpg?x-oss-process=image/resize,m_pad,l_400/quality,Q_90)
![R134a small refrigerated Air Dryer KDL-10F (56cfm) for 10hp compressor](https://icdn.tradew.com/file/201011/214/jpg/6961939.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![R134a small refrigerated Air Dryer KDL-10F (56cfm) for 10hp compressor](https://icdn.tradew.com/file/201011/214/png/7227507.png?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![R134a small refrigerated Air Dryer KDL-10F (56cfm) for 10hp compressor](https://icdn.tradew.com/file/201011/214/png/7227508.png?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
Categories | KDL series small air dryer |
---|---|
Brand | KL |
Model | KDL-10F |
Cooling type | Air cooled |
Refrigerant | R134a,R407c,R410a |
Evaproator | Plate heat exchanger |
Max inlet temperature | 45°C |
Ambient temperature | 40°C |
Dew point | 2-10°C |
Working pressure | 7-10Bar |
Voltage | 220V/50Hz |
L*W*H(mm) | 500*415*680 |
Weight | 45kg |
FOB port | Shanghai 、Ningbo |
Terms of Payment | L/C, T/T |
Update Time | Sep 8,2024 |
KL KDL series are energy saving andenvironment friendly type refrigerated air dryer. It adapts Aluminum plate heatexchanger, mixed the pre-cooled regenerator, evaporator,gas-water separatorinto one. It improves 20% heat exchange efficient compared to other exchanger,then to reach 2-10°C dew point with less consumption along with low maintenance coststo operate.
All-in-one aluminum plate heatexchanger
KDL series refrigeration air dryer is adopted with all-in-onealuminum plate heat exchanger. The air-to-air heat exchanger,air-to-refrigerantheat exchanger (evaporator) and demisterseparator are housed in one aluminum module. It pre-cools the incoming airusing the cold air exiting the refrigerant section. It then final cools the airin the refrigerant section at which point the air stream enters a separationchamber to allow the condensed moisture to fall out. Since the air is reheatedin the regeneration section, the final humidity remains below 25%.
Eco-friendly refrigerant compressor
Each KDL air dryer is equipped with R407C orR134a refrigerant compressor. Scroll compressor offering energy savings of 20-30% when compared with piston compressors. The ability to tolerate liquidreturns coupled with 50% less moving parts render them nearly indestructibleand highly reliable.
Hot-gas by-pass valve
Each model of KDL air dryer is installedwith hot-gas by-pass valve which prevents the freezing inside the evaporator atany load condition. The valve is set during final test and no furtheradjustments are necessary.
KDL series :
Max inlet temperature:45oC
ambient temperature≤40oC
working pressure:7-10Bar
DEE-POINT TEM:2-10oC
Comprehensive presentation
Specifications
Model | Flow Capacity | Power Cons.(kw) | Conn. | Dimensions | Weight | ||||
m3/min | m3/h | CFM | (BSP) | L (mm) | W(mm) | H (mm) | (kg) | ||
KDL-10F | 1.6 | 96 | 56 | 0.47 | 1" | 500 | 415 | 680 | 45 |
KDL-20F | 2.6 | 156 | 92 | 0.85 | 1" | 630 | 450 | 790 | 50 |
KDL-30F | 3.8 | 228 | 134 | 1.04 | 1" | 630 | 450 | 790 | 55 |
KDL-50F | 6 | 360 | 212 | 1.65 | 1 1/2" | 770 | 530 | 890 | 70 |
KDL-60F | 7 | 420 | 247 | 1.65 | 1 1/2" | 820 | 530 | 890 | 80 |
KDL-75F | 8.5 | 510 | 300 | 1.67 | 1 1/2" | 870 | 580 | 890 | 90 |
KDL-100F | 11.5 | 690 | 406 | 2.05 | 2" | 1180 | 580 | 870 | 120 |
KDL-120F | 13.5 | 810 | 476 | 2.3 | 2" | 950 | 730 | 1130 | 140 |
